3370-03
Compact High Power DC Electronic Load 120V , 500A ,
2500W
Description
l
34000A Series has its own control and display panel, CC /
CR / CV / CP / Dynamic modes, 150 sets Store / Recall memory which provides
load set-up more efficiently, also can be remote controlled via GPIB、RS232、USB and
LAN interface.
l
SHORT time setting and SHORT_VH,
SHORT_VL setting function, also can measure Short
Voltage and Current.
l
Dynamic can be simulated under CC, CP mode. The current
Rise / Fall slew rate can be adjusted individually and there is an external
signal input for a Arbitrary
Waveform to simulate load current.
l
Single key for OCP、OPP test function will be more efficiency and accuracy on OCP、OPP testing.
l
Programmable Load ON/OFF voltage, GO/NG meter check,
Voltage meter display ” + “ or “ – “ is selectable and 150 sets Store/Recall larger memory is much
advance feature for each different application.
l
150 sets test parameter and status storage function, user
can recall the storage memory real time in accordance with the auto sequence
requirement.
l
Maximum Voltage up to 1000V provide an idea testing
solution for Power Factor Correction test.
l
Master / Slave control units
maximum up to 1 MASTER, 7 SLAVE.
Features
l
With parallel
function maximum power up to 320KW.
l
Maximum up to 8
units master / slave parallel control.
l
5
digit V/A/W Meter.
l
High-speed
measurement and communication transmission.
l
Large LCD Display、setting values can be adjusted by rotary knob or push button.
l
Voltage、Current and Watt value can be displayed simultaneously.
l
Capable for Power
Factor Correction (PFC) Test. (for 600V,1000V models)
l
OCP、OPP test function
automatically.
l
Power ON status can
be set.
l
CC, CR, CV, CP , CC+CV , CP+CV ,
Dynamic and Short operation mode.
l
SHORT time setting.
l
Protections against I,W,°C
and over-voltage alert.
l
Voltage meter
display the polarity positive（”＋”）or negative（”－”）is
selectable.
l
Optional Interface :
GPIB、RS232、USB、LAN.
l
Support MPPT CC、CR、CV test function for solar panel
l
0.7V @ 1000A is on
Static condition, and the starting voltage must be greater than 5V, if on
Dynamic condition that is 5V @ 1000A
l
New waveform
generator plug in model 9923 adds user programmable
battery discharge current waveform simulation to Prodigit
DC Loads.

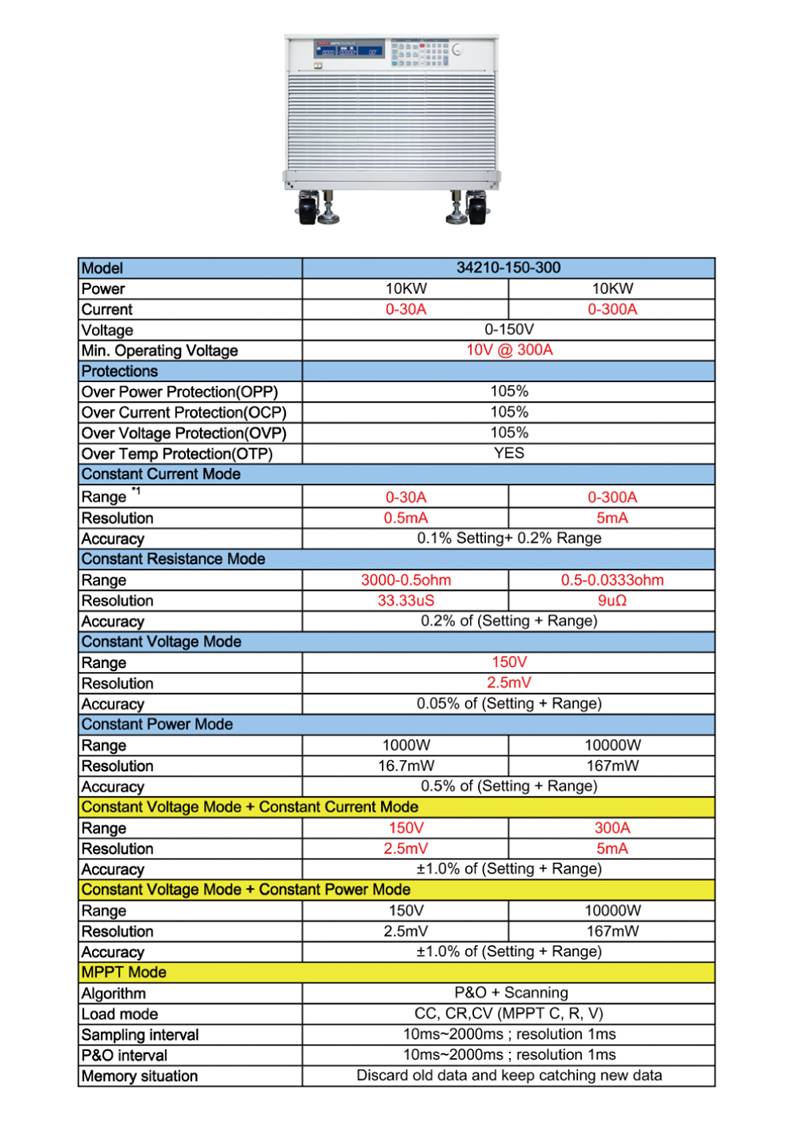

Specifications
